• Gear Driven - Superior Performance

Powerful, Compact and Easy to Maintain

Chicago Pneumatic is a global leader in the design, manufacture and distribution of high performance compressors. In addition to pioneering design, high impact technology and durability, Chicago Pneumatic means Customer Value. CP is the Perfect partner for your industrial air processes and offer products for countless applications for almost every industry. Our extended portfolio includes rotary screw compressors for every range that come with smart power saving controls, in addition to other quality air solutions and services. When it comes to quality, look no further. All our products are designed and built to deliver the performance that will increase your productivity.

Model HP

Pressure (BAR G)

 CFM dB(A) End Connection

Weight (KG)
CPC 40 40 7 8.5 10 13 204 187 170 148 73 1 ½” 865
CPC 50 50 240 223 206 170 865
CPC 60 60 290 265 248 214 895

Reliable Top Performer

Model HP Pressure (BAR G) CFM dB(A) End Connection Weight (KG)

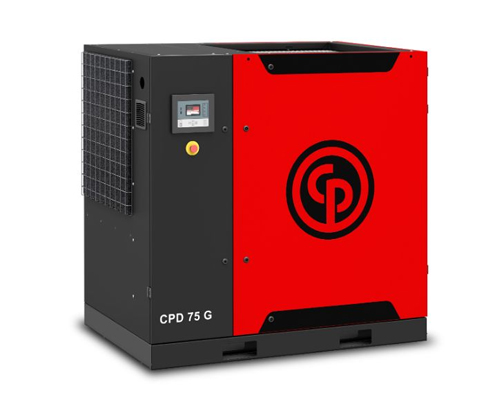

CPD 75 75 7 8.5 10 13 350 329 305 265 71 2″ 1165
CPD 100 100 455 437 392 345 74 1195

Maximise Your Productivity

Model

 HP Pressure (BAR G) CFM dB(A) End Connection Weight (KG)
CPE 100 100 7 10 13 517 429 362 73 2″ 1640

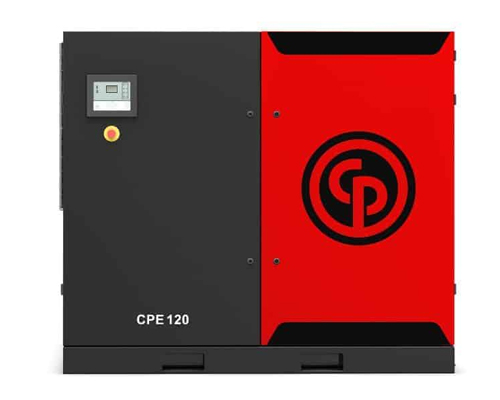

CPE 120 120 7 10 13 593 498 423 74

Model

 HP Pressure (BAR G) CFM dB(A) End Connection Weight(KG) L         W         H
MM
CPE 150 150 7.5 8.5 10 14 706 663 602 485 78 2 ½” 2900 2780 1680 2010
CPE 180 180 850 803 739 593 79 3″ 3500 2780 1970 2010
CPE 220 220 1072 1021 943 763 3550
CPF 270 270 13 1208 1158 1067 954 80 DN 125 4660 3500 2135 2350
CPF 340 340 1420 1367 1293 1151 5590
CPG 380 380 – 1783 1677 1497 – 81 7380 3525 2135 2350
CPG 450 450 – 8 13 – 1851 1713 1434 82 DN 150 8680 5500 2135 2350
CPG 480 480 – 2038 1896 1561 8740
