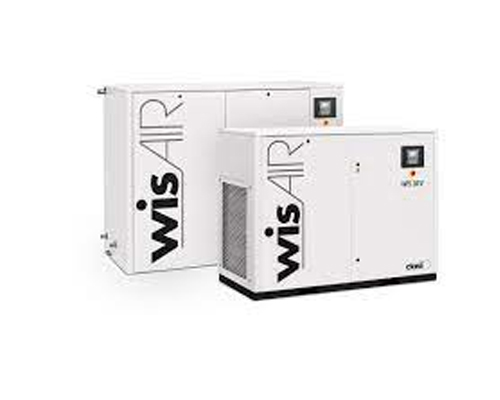

WIS AIR
Water Injected Screw Compressor
- ISO 8573 – 1 Class 0 Certified Quality Air
- Capacity: 180 CFM to 300 CFM
- HP Rating: 40, 50, 60 & 75
- Working Pressure in Bar: 5, 10 & 13
- Cooling Option – Air Cooled
- Option:4Inverter Drive Capacity: 100 CFM to 328 CFM
- 4Inverter Drive HP Rating:20, 25, 30, 40, 50 & 75
Spiral Air
Scroll Compressor
- ISO 8573 – 1 Class 0 Certified Quality Air
- Capacity: 6 to 85 CFM
- Maximum Working Pressure: 8 Bar / 10 Bar
- HP Rating: 2 – 30
- Options: 4Mono (HP Rating) – 2, 3, 5 & 7.
- Multi (HP Rating) – 4Multi (HP Rating) – (2 X 5), (2 X7.5), (4 X 5), (3 X 7.5), (4 X 7.5)
- Options:4 Floor Mount, Tank Mount, Tank Mount with

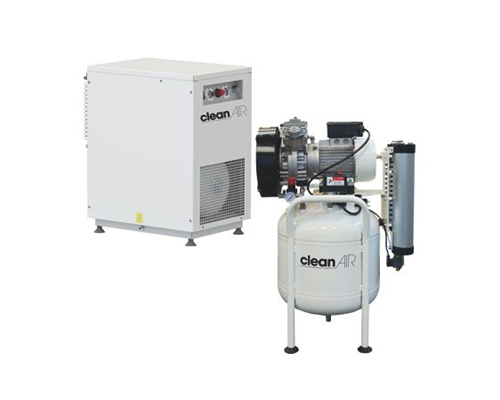

Clean Air
Dental Compressor
- Capacity: 4 CFM to 8 CFM
- Maximum Working Pressure: 8 Bar
- HP Rating: 1.5, 2, 2.5
- Power Supply: 230 V / 1PH / 50 Hz
- Option: Open Frame, With Tank (25 L / 50 L), With Dryer, Silenced With Tank 30 L, Silenced With 30 L Tank & Dryer.

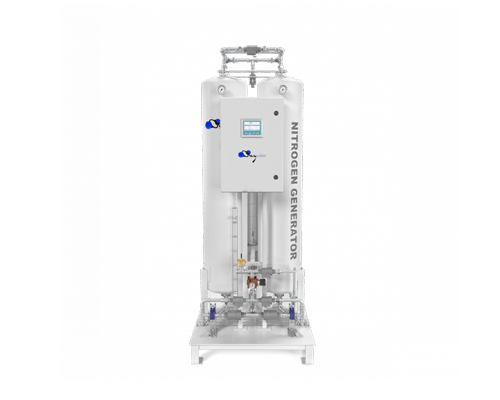

PPNGs
- Capacity: 1 Nm3/Hr to 23.3 Nm3/Hr
- Maximum Working Pressure: 13 Bar / 16 Bar
Important features & benefits
- Easy Access to inlet & outlet piping – Plug & Play philosophy
- Flexible PSA technology – Set your desired purity (between 95-99,999%)
- Inhouse designed controller – Enables full communication possibilities
- Up to 13 bars air inlet pressure – No need of nitrogen booster for N2 up to 12,5 bars Unique tower & valve design – Results in one of the lowest air factors on the market
- Optimized design – Enables a minimum footprint in your factory
- Optimized for easy service – Consumable parts are easy to access and replace
- High quality carbon molecular sieve offers life time service interval and excellent performance in all conditions
- Zirconia oxygen sensor – High quality product with 5 years service interval
